Spring项目架构预览

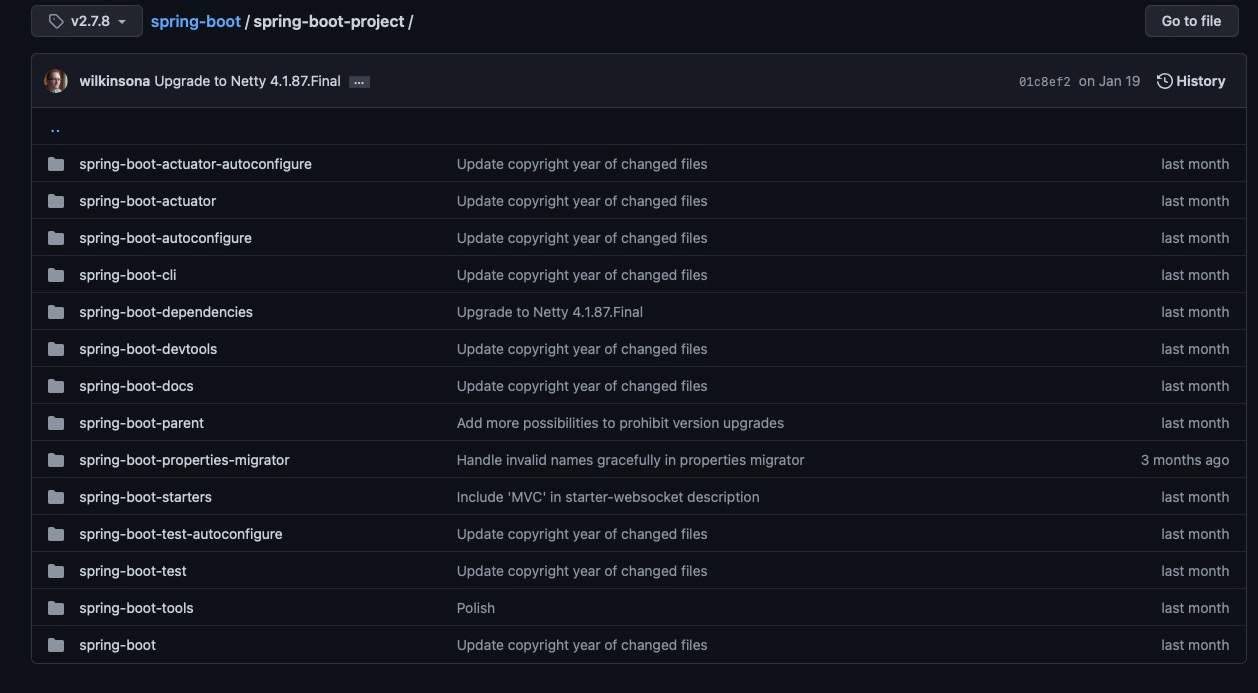

Spring项目架构

推荐使用idea进行代码阅读

核心

预定大于配置，这是SpringBoot的一个原则。它的核心就是配置自动加载。
核心部分:

  1. 注解: @EnableAutoConfiguration
  2. 配置注册内容: spring.factories
  3. 自动配置类: xxxAutoConfiguration
  4. 前置条件注解: @Conditional
  5. Starters: 三方组件

自动装配

@EnableAutoConfiguration注解

1
2
3
4
5
6
7
8
9
10
11
12
13
/**
  * 启动应用上下文自动配置，并配置你需要的bean。
  */
@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {

	// 是否启动自动配置环境变量
	String ENABLED_OVERRIDE_PROPERTY = "spring.boot.enableautoconfiguration";

	// 自启动需要排除的类集合
	Class<?>[] exclude() default {};
}

核心注解: @Import()

1
2
3
4
5
6
/**
  * 和xml文件中的import作用一样，可以导入@Configuration注解类,ImportSelector实现类,ImportBeanDefinitionRegistrar实现类或者普通的pojo
  */
public @interface Import {
	Class<?>[] value();
}

核心接口类: ImportSelector

1
2
3
4
5
6
/**
  * 可以导入@Configuration注解类。通过下面的接口方法，放回一个string类型的集合，集合内是全类名。
  */
public interface ImportSelector {
    String[] selectImports(AnnotationMetadata importingClassMetadata);
}

ImportSelector实现类: AutoConfigurationImportSelector，也是自动配置中导入的类。

1
2
3
public class AutoConfigurationImportSelector implements DeferredImportSelector, BeanClassLoaderAware,
		ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered {
}
  • 可以看出它实现了DeferredImportSelector类，DeferredImportSelector类是ImportSelector的子类。这个子类会在所有的@Configurationbean加载之后运行，返回配置类集合。
  • 同时它还实现了BeanClassLoaderAware,ResourceLoaderAware,BeanFactoryAware,EnvironmentAware这四个接口，那么Spring就会在调用ImportSelector之前调用Aware接口的方法。
  • 同时，它还实现了Order接口，可以通过@Order注解来自定义顺序。
  • 加载配置的部分，后面详细分析

EnableAutoConfiguration总结:

  1. 通过@Import注解开启加载功能
  2. 检查是否开启自动配置的环境变量
  3. 排除不需要加载的类或者类名
  4. 通过ImportSelector的selectImports()方法，加载引入了注解@Congifuration的类的全类名集合
    以上就是自动装配的几个核心步骤。

selectImports的具体过程

核心步骤之后就是具体流程了，selectImports方法几乎涵盖了组件自动装配的所有处理逻辑。以下类是@Import住家加载的类，可以查看详细的流程。

AutoConfigurationImportSelector

具体自动配置加载流程。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
public class AutoConfigurationImportSelector implements DeferredImportSelector, BeanClassLoaderAware,
		ResourceLoaderAware, BeanFactoryAware, EnvironmentAware, Ordered {

    public String[] selectImports(AnnotationMetadata annotationMetadata) {
        // 判断是否开启了自动装配
        if (!isEnabled(annotationMetadata)) {
            return NO_IMPORTS;
        }
        // 通过注解元信息，获取对应包装之后的注解类信息
        AutoConfigurationEntry autoConfigurationEntry = getAutoConfigurationEntry(annotationMetadata);
        // 将获取的配置信息转换为对应的字符串集合
        return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
    }

    protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
        // 再次判断是否开启注解
        if (!isEnabled(annotationMetadata)) {
            return EMPTY_ENTRY;
        }
        // 获取注解属性
        AnnotationAttributes attributes = getAttributes(annotationMetadata);
        // 加载被认为是自动配置的类名。重点！！！
        List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
        // 去重
        configurations = removeDuplicates(configurations);
        // 根据注解拿取需要排除的类的信息
        Set<String> exclusions = getExclusions(annotationMetadata, attributes);
        // 排除类检查，确定当前类包含那些排除类
        checkExcludedClasses(configurations, exclusions);
        // 正式去除排除类
        configurations.removeAll(exclusions);
        // 获取过滤配置（将源码处拆分为两部，方便查看过程）
        ConfigurationClassFilter configurationClassFilter = getConfigurationClassFilter();
        // 对自动加载的配置进行过滤。把不匹配的过滤。重点！！！
        configurations = configurationClassFilter.filter(configurations);
        // 获取监听器配置，并进行事件广播
        fireAutoConfigurationImportEvents(configurations, exclusions);
        return new AutoConfigurationEntry(configurations, exclusions);
    }


    protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
        // 使用指定的加载器加载对应工厂类型的所有类的全类名。
        List<String> list = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(), getBeanClassLoader())
        List<String> configurations = new ArrayList<>(list);
        // 在新版的springboot中，自动配置类已经不在META-INF/spring。factories中了。
        // 将其拆封开了，放入了META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports中
        ImportCandidates.load(AutoConfiguration.class, getBeanClassLoader()).forEach(configurations::add);
        Assert.notEmpty(configurations,
                "No auto configuration classes found in META-INF/spring.factories nor in META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports. If you "
                        + "are using a custom packaging, make sure that file is correct.");
        return configurations;
    }

    // 指定工厂类的类型为EnableAutoConfiguration，所以之后只会加载相关自动配置的类
    protected Class<?> getSpringFactoriesLoaderFactoryClass() {
        return EnableAutoConfiguration.class;
    }

    // 获取需要排除的类
    protected Set<String> getExclusions(AnnotationMetadata metadata, AnnotationAttributes attributes) {
		Set<String> excluded = new LinkedHashSet<>();
		// 拿取注解上的配置
		excluded.addAll(asList(attributes, "exclude"));
		excluded.addAll(asList(attributes, "excludeName"));
		// 拿取xml的配置: spring.autoconfigure.exclude
		excluded.addAll(getExcludeAutoConfigurationsProperty());
		return excluded;
	}

	private ConfigurationClassFilter getConfigurationClassFilter() {
		if (this.configurationClassFilter == null) {
		    // 没有默认配置就从自动加载的配置里面找
			List<AutoConfigurationImportFilter> filters = getAutoConfigurationImportFilters();
			for (AutoConfigurationImportFilter filter : filters) {
			    // 循环过滤器，如果过滤器是Aware的实现类，且是BeanClassLoaderAware，BeanFactoryAware，EnvironmentAware，ResourceLoaderAware的实现类，
			    // 将当前对应的配置设置到对应的Aware实现类中
				invokeAwareMethods(filter);
			}
			// 实例化
			this.configurationClassFilter = new ConfigurationClassFilter(this.beanClassLoader, filters);
		}
		return this.configurationClassFilter;
	}

	// 获取自动配置中的监听配置集合，并进行封装
	private void fireAutoConfigurationImportEvents(List<String> configurations, Set<String> exclusions) {
		List<AutoConfigurationImportListener> listeners = getAutoConfigurationImportListeners();
		if (!listeners.isEmpty()) {
			AutoConfigurationImportEvent event = new AutoConfigurationImportEvent(this, configurations, exclusions);
			// 循环监听器并调用onAutoConfigurationImportEvent()方法进行广播
			for (AutoConfigurationImportListener listener : listeners) {
				invokeAwareMethods(listener);
				// 进行事件广播
				listener.onAutoConfigurationImportEvent(event);
			}
		}
	}

	// 获取自动配置过滤器
	protected List<AutoConfigurationImportFilter> getAutoConfigurationImportFilters() {
		return SpringFactoriesLoader.loadFactories(AutoConfigurationImportFilter.class, this.beanClassLoader);
	}

	private void invokeAwareMethods(Object instance) {
		if (instance instanceof Aware) {
			if (instance instanceof BeanClassLoaderAware) {
				((BeanClassLoaderAware) instance).setBeanClassLoader(this.beanClassLoader);
			}
			if (instance instanceof BeanFactoryAware) {
				((BeanFactoryAware) instance).setBeanFactory(this.beanFactory);
			}
			if (instance instanceof EnvironmentAware) {
				((EnvironmentAware) instance).setEnvironment(this.environment);
			}
			if (instance instanceof ResourceLoaderAware) {
				((ResourceLoaderAware) instance).setResourceLoader(this.resourceLoader);
			}
		}
	}

    // 内部类，用于实现过滤匹配
	private static class ConfigurationClassFilter {

		private final AutoConfigurationMetadata autoConfigurationMetadata;

		private final List<AutoConfigurationImportFilter> filters;

        // 加载 META-INF/spring-autoconfigure-metadata.properties 元数据
		ConfigurationClassFilter(ClassLoader classLoader, List<AutoConfigurationImportFilter> filters) {
			this.autoConfigurationMetadata = AutoConfigurationMetadataLoader.loadMetadata(classLoader);
			this.filters = filters;
		}

	    List<String> filter(List<String> configurations) {
			long startTime = System.nanoTime();
			String[] candidates = StringUtils.toStringArray(configurations);
			boolean skipped = false;
			for (AutoConfigurationImportFilter filter : this.filters) {
			    // 过滤器匹配处理后的自动配置类与元文件
				boolean[] match = filter.match(candidates, this.autoConfigurationMetadata);
				for (int i = 0; i < match.length; i++) {
					if (!match[i]) {
						candidates[i] = null;
						skipped = true;
					}
				}
			}
			// 如果都不匹配则跳过，返回配置类
			if (!skipped) {
				return configurations;
			}
			List<String> result = new ArrayList<>(candidates.length);
			// 构建新的配置类集合
			for (String candidate : candidates) {
				if (candidate != null) {
					result.add(candidate);
				}
			}
			if (logger.isTraceEnabled()) {
				int numberFiltered = configurations.size() - result.size();
				logger.trace("Filtered " + numberFiltered + " auto configuration class in "
						+ TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - startTime) + " ms");
			}
			return result;
		}
	}
}

ImportCandidates

新版本的自动装配文件加载过程

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
// 包含@Configuration注解导入的后续配置，通常都是自动配置
public final class ImportCandidates implements Iterable<String> {

    private static final String LOCATION = "META-INF/spring/%s.imports";

	/**
	 * 加载classpath路径下的额外配置，文件名为META-INF/spring/full-qualified-annotation-name.imports
	 * 每一行都是它的全类名，使用#标记注释
	 */
	public static ImportCandidates load(Class<?> annotation, ClassLoader classLoader) {
		Assert.notNull(annotation, "'annotation' must not be null");
		// 获取类加载器
		ClassLoader classLoaderToUse = decideClassloader(classLoader);
		// 根据传入的类名AutoConfiguration，转换路径；
		// META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports
		String location = String.format(LOCATION, annotation.getName());
		// 构建为url的枚举对象，方面后续遍历
		Enumeration<URL> urls = findUrlsInClasspath(classLoaderToUse, location);
		List<String> importCandidates = new ArrayList<>();
		while (urls.hasMoreElements()) {
			URL url = urls.nextElement();
			// 根据枚举的url查找对应的自动配置文件，并返回类名的集合
			importCandidates.addAll(readCandidateConfigurations(url));
		}
		// 封装自动装配类名的集合并返回
		return new ImportCandidates(importCandidates);
	}
}

SpringFactoriesLoader

spring.factories配置的加载

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
public final class SpringFactoriesLoader {

    // facotries的加载路径配置
    public static final String FACTORIES_RESOURCE_LOCATION = "META-INF/spring.factories";

    // 加载目录"META-INF/spring.fatories"下的工厂实现类全类名
    public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
        // 赋值类加载器，如果为null，默认为SpringFactoriesLoader这个类加载器
        ClassLoader classLoaderToUse = classLoader;
        if (classLoaderToUse == null) {
            classLoaderToUse = SpringFactoriesLoader.class.getClassLoader();
        }
        // 获取工厂类型的名称
        String factoryTypeName = factoryType.getName();
        // 获取到配置列表，再获取符合传入工厂类名的集合，默认为空集合
        return loadSpringFactories(classLoaderToUse).getOrDefault(factoryTypeName, Collections.emptyList());
    }

    // 加载所有的META-INF/spring.factories文件，封装为Map
    private static Map<String, List<String>> loadSpringFactories(ClassLoader classLoader) {
        // 预先从缓存中获取
        Map<String, List<String>> result = cache.get(classLoader);
        if (result != null) {
            return result;
        }

        result = new HashMap<>();
        try {
            // 通过类加载器加载对应路径的资源
            Enumeration<URL> urls = classLoader.getResources(FACTORIES_RESOURCE_LOCATION);
            while (urls.hasMoreElements()) {
                URL url = urls.nextElement();
                UrlResource resource = new UrlResource(url);
                Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                for (Map.Entry<?, ?> entry : properties.entrySet()) {
                    String factoryTypeName = ((String) entry.getKey()).trim();
                    String[] factoryImplementationNames =
                            StringUtils.commaDelimitedListToStringArray((String) entry.getValue());
                    for (String factoryImplementationName : factoryImplementationNames) {
                        result.computeIfAbsent(factoryTypeName, key -> new ArrayList<>())
                                .add(factoryImplementationName.trim());
                    }
                }
            }

            // 去重
            result.replaceAll((factoryType, implementations) -> implementations.stream().distinct()
                    .collect(Collectors.collectingAndThen(Collectors.toList(), Collections::unmodifiableList)));
            cache.put(classLoader, result);
        }
        catch (IOException ex) {
            throw new IllegalArgumentException("Unable to load factories from location [" +
                    FACTORIES_RESOURCE_LOCATION + "]", ex);
        }
        return result;
    }
}

AutoConfigurationImportFilter

自动配置的过滤器

1
2
3
4
5
6
7
8
9
10
11
/** 注册在spring.factories中的过滤器，用来快速过滤自动配置，在读取字节码之前。
  * 当它的实现类，也是如下四个Aware接口的实现类时，会优先调用它们的方法，在调用filter
  * EnvironmentAware
  * BeanFactoryAware
  * BeanClassLoaderAware
  * ResourceLoaderAware
  */
public interface AutoConfigurationImportFilter {
  // 筛选对应的自动配置。返回的组合和传入的自动配置数组长度相同
  boolean[] match(String[] autoConfigurationClasses, AutoConfigurationMetadata autoConfigurationMetadata);
}

FilteringSpringBootCondition

实现了AutoConfigurationImportFilter接口的match方法

OnBeanCondition，OnClassCondition，OnWebApplicationCondition的父类抽象类，这三个子类是自动配置AutoConfigurationImportFilter的过滤器

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
abstract class FilteringSpringBootCondition extends SpringBootCondition
		implements AutoConfigurationImportFilter, BeanFactoryAware, BeanClassLoaderAware {

    // 实现了过滤方法
    public boolean[] match(String[] autoConfigurationClasses, AutoConfigurationMetadata autoConfigurationMetadata) {
		ConditionEvaluationReport report = ConditionEvaluationReport.find(this.beanFactory);
		// 抽象方法，具体是三个子类实现
		ConditionOutcome[] outcomes = getOutcomes(autoConfigurationClasses, autoConfigurationMetadata);
		boolean[] match = new boolean[outcomes.length];
		for (int i = 0; i < outcomes.length; i++) {
		    // 返回结果判断，为null或者结果为true，最后结果就是true，否则为false
			match[i] = (outcomes[i] == null || outcomes[i].isMatch());
			if (!match[i] && outcomes[i] != null) {
			    // 打印错误日志
				logOutcome(autoConfigurationClasses[i], outcomes[i]);
				if (report != null) {
				    // 进行记录
					report.recordConditionEvaluation(autoConfigurationClasses[i], this, outcomes[i]);
				}
			}
		}
		return match;
	}

    // 类加载操作
	protected static Class<?> resolve(String className, ClassLoader classLoader) throws ClassNotFoundException {
		if (classLoader != null) {
			return Class.forName(className, false, classLoader);
		}
		return Class.forName(className);
	}

	protected enum ClassNameFilter {

		PRESENT {

			@Override
			public boolean matches(String className, ClassLoader classLoader) {
				return isPresent(className, classLoader);
			}

		},

		MISSING {

			@Override
			public boolean matches(String className, ClassLoader classLoader) {
				return !isPresent(className, classLoader);
			}

		};

		abstract boolean matches(String className, ClassLoader classLoader);

        // 通过类加载器来判断是否该类存在
		static boolean isPresent(String className, ClassLoader classLoader) {
			if (classLoader == null) {
				classLoader = ClassUtils.getDefaultClassLoader();
			}
			try {
				resolve(className, classLoader);
				return true;
			}
			catch (Throwable ex) {
				return false;
			}
		}

	}
}

OnClassCondition:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
@Order(Ordered.HIGHEST_PRECEDENCE)
class OnClassCondition extends FilteringSpringBootCondition {

    @Override
	protected final ConditionOutcome[] getOutcomes(String[] autoConfigurationClasses,
			AutoConfigurationMetadata autoConfigurationMetadata) {
		// 有多个配置和多个后台线程时，使用一个额外的线程可以有更好的性能，更多则不是很理想
		if (autoConfigurationClasses.length > 1 && Runtime.getRuntime().availableProcessors() > 1) {
			return resolveOutcomesThreaded(autoConfigurationClasses, autoConfigurationMetadata);
		}
		else {
		    // 单个情况下处理
			OutcomesResolver outcomesResolver = new StandardOutcomesResolver(autoConfigurationClasses, 0,
					autoConfigurationClasses.length, autoConfigurationMetadata, getBeanClassLoader());
			return outcomesResolver.resolveOutcomes();
		}
	}

	private ConditionOutcome[] resolveOutcomesThreaded(String[] autoConfigurationClasses,
			AutoConfigurationMetadata autoConfigurationMetadata) {
	    // 获取配置的中间树
		int split = autoConfigurationClasses.length / 2;
		// 第一部分放入一个线程
		OutcomesResolver firstHalfResolver = createOutcomesResolver(autoConfigurationClasses, 0, split,
				autoConfigurationMetadata);
		// 第二部分正常执行
		OutcomesResolver secondHalfResolver = new StandardOutcomesResolver(autoConfigurationClasses, split,
				autoConfigurationClasses.length, autoConfigurationMetadata, getBeanClassLoader());
		ConditionOutcome[] secondHalf = secondHalfResolver.resolveOutcomes();
		ConditionOutcome[] firstHalf = firstHalfResolver.resolveOutcomes();
		ConditionOutcome[] outcomes = new ConditionOutcome[autoConfigurationClasses.length];
		// 合并返回结果
		System.arraycopy(firstHalf, 0, outcomes, 0, firstHalf.length);
		System.arraycopy(secondHalf, 0, outcomes, split, secondHalf.length);
		return outcomes;
	}

	// 内部类
	private static final class StandardOutcomesResolver implements OutcomesResolver {

	    @Override
		public ConditionOutcome[] resolveOutcomes() {
			return getOutcomes(this.autoConfigurationClasses, this.start, this.end, this.autoConfigurationMetadata);
		}

        // 最后结果都会调用这个方法。间接调用getOutcome()方法
		private ConditionOutcome[] getOutcomes(String[] autoConfigurationClasses, int start, int end,
				AutoConfigurationMetadata autoConfigurationMetadata) {
			// 构建新的集合
			ConditionOutcome[] outcomes = new ConditionOutcome[end - start];
			// 通过开始和结束的位置进行遍历
			for (int i = start; i < end; i++) {
			    // 活动对应自动配置的全类名
				String autoConfigurationClass = autoConfigurationClasses[i];
				if (autoConfigurationClass != null) {
				    // 非空情况下，从元数据中获取对应的配置类的ConditionalOnClass
					String candidates = autoConfigurationMetadata.get(autoConfigurationClass, "ConditionalOnClass");
					if (candidates != null) {
					    // 调用方法后，把结果放入对应位置
						outcomes[i - start] = getOutcome(candidates);
					}
				}
			}
			return outcomes;
		}

		private ConditionOutcome getOutcome(String candidates) {
			try {
                // 判断是否有多个，没有则继续往下走
				if (!candidates.contains(",")) {
					return getOutcome(candidates, this.beanClassLoader);
				}
				for (String candidate : StringUtils.commaDelimitedListToStringArray(candidates)) {
				    // 把对应的元数据中的配置
					ConditionOutcome outcome = getOutcome(candidate, this.beanClassLoader);
					if (outcome != null) {
						return outcome;
					}
				}
			}
			catch (Exception ex) {
				// We'll get another chance later
			}
			return null;
		}

		// 判断类是否符合条件
		private ConditionOutcome getOutcome(String className, ClassLoader classLoader) {
		    // 调用FilteringSpringBootCondition内部类ClassNameFilter来判断类加载情况
		    // 如果没有匹配到，就会将结果false进行封装，再进行返回
			if (ClassNameFilter.MISSING.matches(className, classLoader)) {
				return ConditionOutcome.noMatch(ConditionMessage.forCondition(ConditionalOnClass.class)
						.didNotFind("required class").items(Style.QUOTE, className));
			}
			return null;
		}
	}
}

过滤器流程总结

  • 从自动装配的配置中通过AutoConfigurationImportFilter类型获取过滤器集合
  • 遍历过滤器，并把其中比较特殊的几种过滤器进行操作，然后返回对应的封装类
  • 再次遍历过滤器，依次执行过滤器的match()方法
  • 拼装自动配置类名和特定类名
  • 通过类加载的方式校验是否存在
  • 加载成功则匹配成功，抛出异常则失败
  • 将匹配结果以特定长度的布尔值返回
  • 根据返回值对自动配置类集合进行重新筛选

@Conditional注解

spring4.0引入的新特性，可根据是否满足指定条件来决定是否进行Bean的实例化及其装配。

1
2
3
4
5
6
7
@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Conditional {
	// 所有的condition的类都必须满足match()方法才能够被注册
	Class<? extends Condition>[] value();
}
1
2
3
4
5
6
@FunctionalInterface
public interface Condition {
  // context: spring应用的上下文
  // metadata: 访问特定类的注解功能
  boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata);
}

拥有众多衍生注解，它们都组合了@Conditional注解:

  • @ConditionalOnBean: 容器有指定的bean
  • @ConditionalOnClass: 在classpath类路径下有指定类的条件下
  • @ConditionalOnExpression: 基于SpEL表达式判断条件
  • @ConditionalOnJava: 基于JVM版本作为判断条件
  • @ConditionalOnResource: 类路径是否有指定的值
  • @ConditionalOnWebApplication: 在项目是一个Web项目的条件下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
@Target({ ElementType.TYPE, ElementType.METHOD })
@Retention(RetentionPolicy.RUNTIME)
@Documented
// 组合@Conditional注解，并指定了对应的Condition类
@Conditional(OnWebApplicationCondition.class)
public @interface ConditionalOnWebApplication {

    	Type type() default Type.ANY;

	// web应用类型的枚举
	enum Type {
		ANY,
		SERVLET,
		REACTIVE
	}
}

OnWebApplicationCondition类也同样实现了FilteringSpringBootCondition类，其中还继承了SpringBootCondition

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
// 实现了Condition接口的match()方法，并定义了接口getMatchOutcome()
public abstract class SpringBootCondition implements Condition {

    public final boolean matches(ConditionContext context, AnnotatedTypeMetadata metadata) {
        // 内部类，获取类名或者方法名
        String classOrMethodName = getClassOrMethodName(metadata);
		try {
		    // 抽象类，子类实现的
			ConditionOutcome outcome = getMatchOutcome(context, metadata);
			// 记录日志
			logOutcome(classOrMethodName, outcome);
			// 记录
			recordEvaluation(context, classOrMethodName, outcome);
			// 返回是否匹配
			return outcome.isMatch();
		}
		catch (NoClassDefFoundError ex) {
		    ...
		}
		catch (RuntimeException ex) {
			throw new IllegalStateException("Error processing condition on " + getName(metadata), ex);
		}
    }

    public abstract ConditionOutcome getMatchOutcome(ConditionContext context, AnnotatedTypeMetadata metadata);
}

子类OnWebApplicationCondition类实现getMatchOutcome()方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
@Order(Ordered.HIGHEST_PRECEDENCE + 20)
class OnWebApplicationCondition extends FilteringSpringBootCondition {

    @Override
	public ConditionOutcome getMatchOutcome(ConditionContext context, AnnotatedTypeMetadata metadata) {
	    // 判断是否包含注解
		boolean required = metadata.isAnnotated(ConditionalOnWebApplication.class.getName());
		// 判断是否为web应用
		ConditionOutcome outcome = isWebApplication(context, metadata, required);
		// 包含注解，不匹配，返回不匹配的错误信息
		if (required && !outcome.isMatch()) {
			return ConditionOutcome.noMatch(outcome.getConditionMessage());
		}
		// 不包含注解，但是匹配，返回不匹配的错误信息
		if (!required && outcome.isMatch()) {
			return ConditionOutcome.noMatch(outcome.getConditionMessage());
		}
		// 包含注解，并且匹配。返回正确的匹配信息
		return ConditionOutcome.match(outcome.getConditionMessage());
	}

    // 判断web应用
    private ConditionOutcome isWebApplication(ConditionContext context, AnnotatedTypeMetadata metadata,
			boolean required) {
		switch (deduceType(metadata)) {
			case SERVLET:
				return isServletWebApplication(context);
			case REACTIVE:
				return isReactiveWebApplication(context);
			default:
				return isAnyWebApplication(context, required);
		}
	}

	// 判断是否为servlet应用的四个点
	private ConditionOutcome isServletWebApplication(ConditionContext context) {
		ConditionMessage.Builder message = ConditionMessage.forCondition("");
		// 1. 尝试使用类加载方式加载对应的web应用类
		if (!ClassNameFilter.isPresent(SERVLET_WEB_APPLICATION_CLASS, context.getClassLoader())) {
			return ConditionOutcome.noMatch(message.didNotFind("servlet web application classes").atAll());
		}
		// 2. bean工厂非null，获取注册的所以作用域，并校验是否拥有session，如果有，则是web应用s
		if (context.getBeanFactory() != null) {
			String[] scopes = context.getBeanFactory().getRegisteredScopeNames();
			if (ObjectUtils.containsElement(scopes, "session")) {
				return ConditionOutcome.match(message.foundExactly("'session' scope"));
			}
		}
		// 3. 判断Environment是否为ConfigurableWebEnvironment
		if (context.getEnvironment() instanceof ConfigurableWebEnvironment) {
			return ConditionOutcome.match(message.foundExactly("ConfigurableWebEnvironment"));
		}
		// 4. 判断ResourceLoader是否为WebApplicationContext
		if (context.getResourceLoader() instanceof WebApplicationContext) {
			return ConditionOutcome.match(message.foundExactly("WebApplicationContext"));
		}
		return ConditionOutcome.noMatch(message.because("not a servlet web application"));
	}
}
